BEVEL GEARS

BEVEL GEARS BY ARROW GEAR

Home / BEVEL GEARS

Hypoid Gear

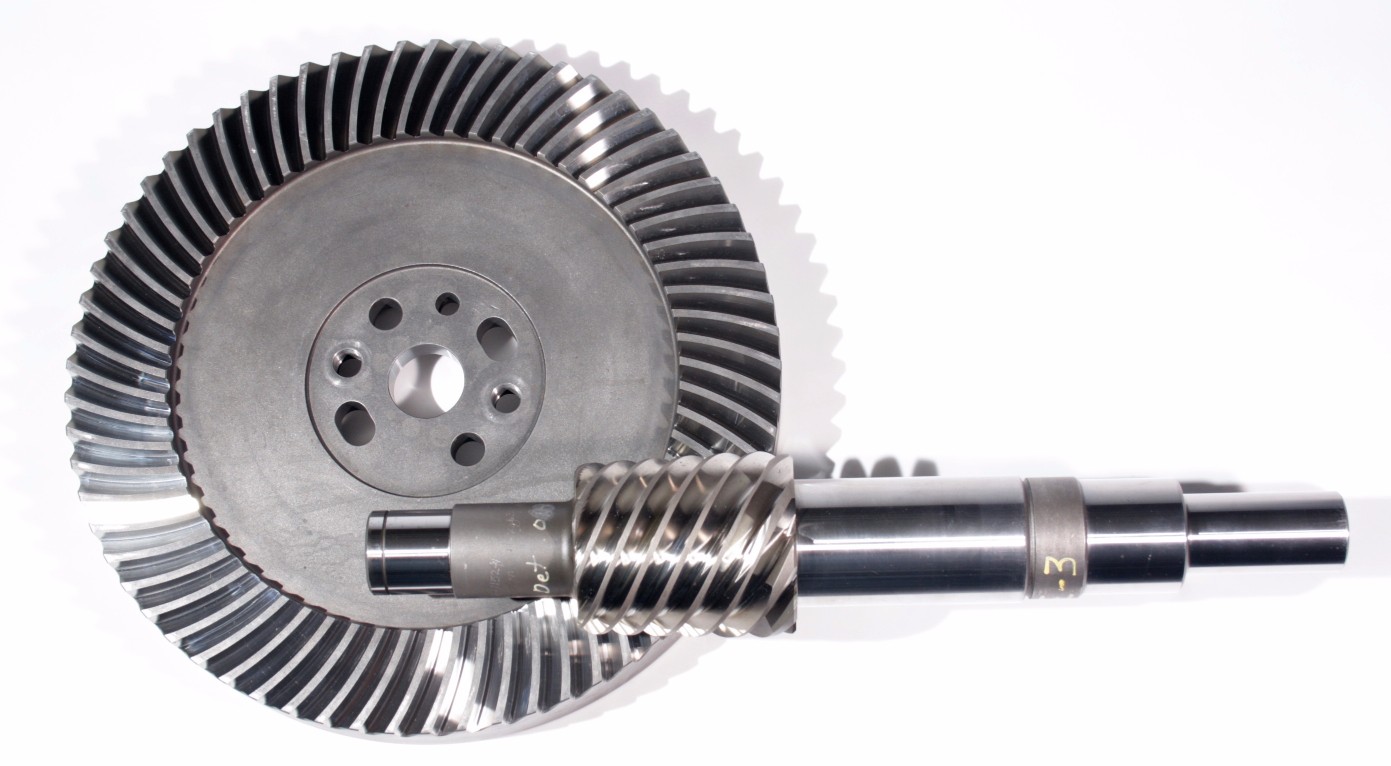

Hypoid Gears Set

Size Range and Capability for Hypoid Gears

Maximum Pitch Diameter Diametral Pitch Face Width Unground Tooth Ground Tooth
30” 1.5 – 48 5 AGMA Q9 AGMA Q13

Non-Intersecting Axes

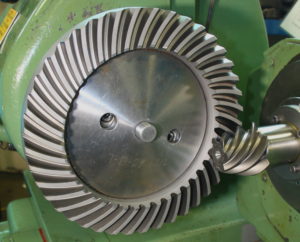

Hypoid Gear Set
Spiral Bevel Gear

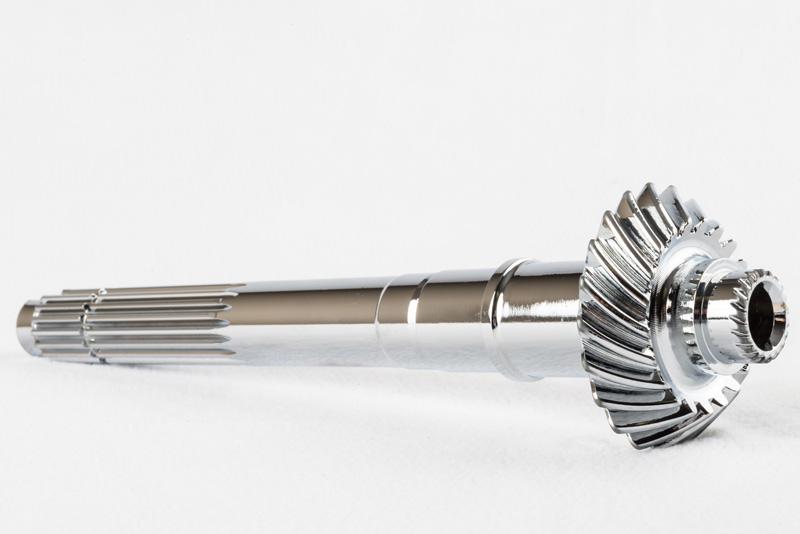

Spiral Bevel Gears

Size Range and Capability for Spiral Bevel Gears

Maximum Pitch DiameterDiametral PitchFace WidthUnground ToothGround Tooth
30”1.5 – 485.0AGMA Q9/10AGMA Q13

An Arrow Gear Specialty
Right Angle Gears

Right Angle Spiral Bevel Gear Set

Size Range and Capability for Right Angle Gears

Maximum Pitch DiameterDiametral PitchFace WidthUnground ToothGround Tooth
30′1.5 – 485.0AGMA Q9/10AGMA Q13

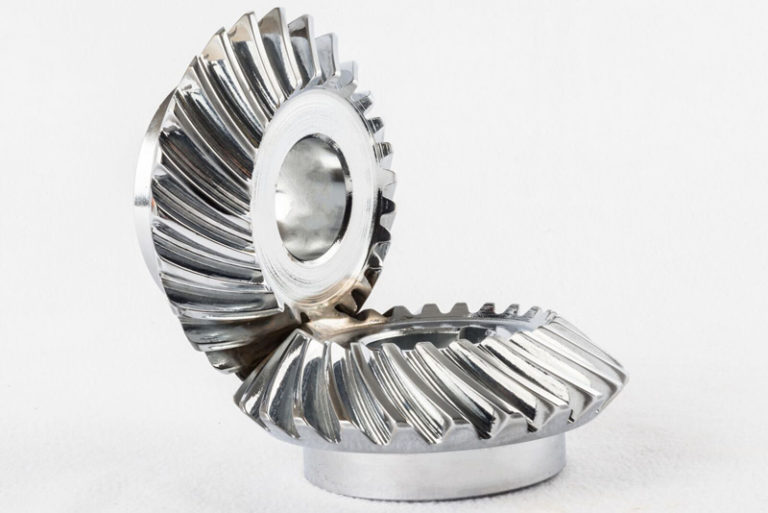

Right Angle Spiral Bevel Gear Set
Straight Bevel

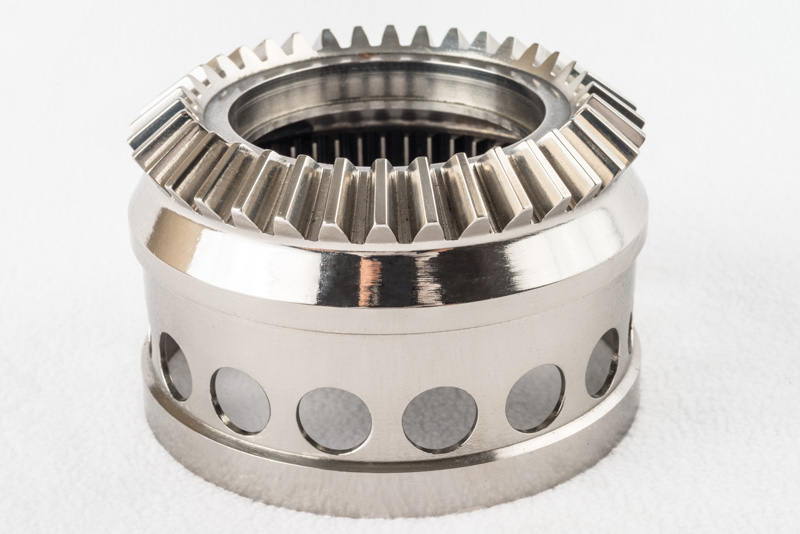

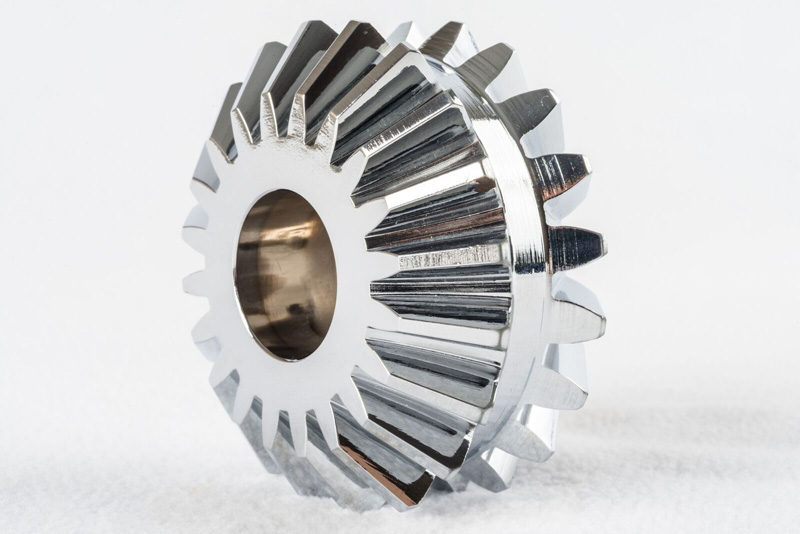

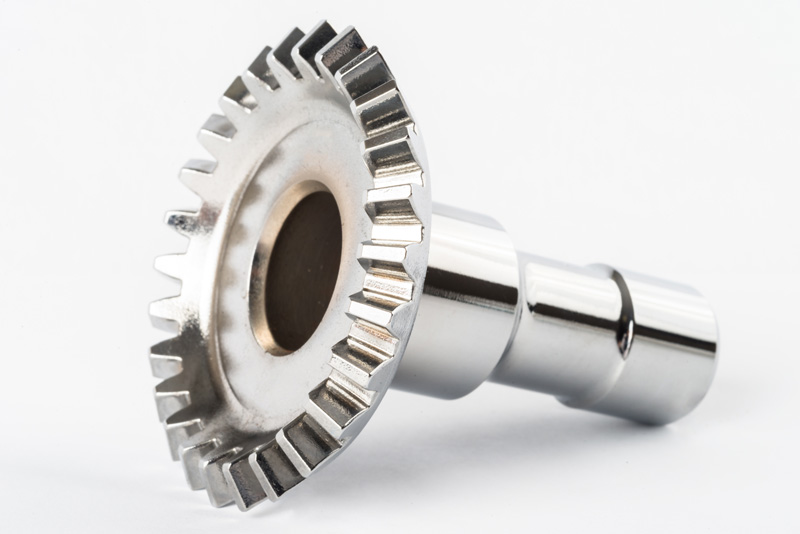

Straight Bevel Gears

Size Range and Capability for Straight Bevel Gears

Maximum Pitch DiameterDiametral PitchFace WidthUnground Tooth
28”2.5 – 486.0AGMA Q9

The Simplest Form of Bevel Gear
Zerol®

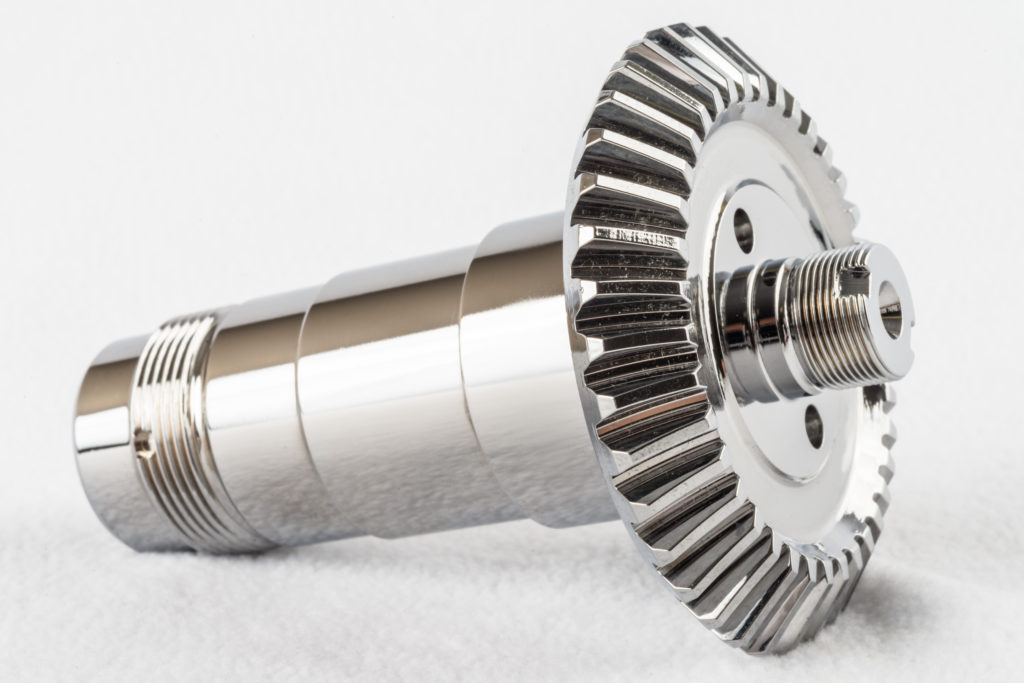

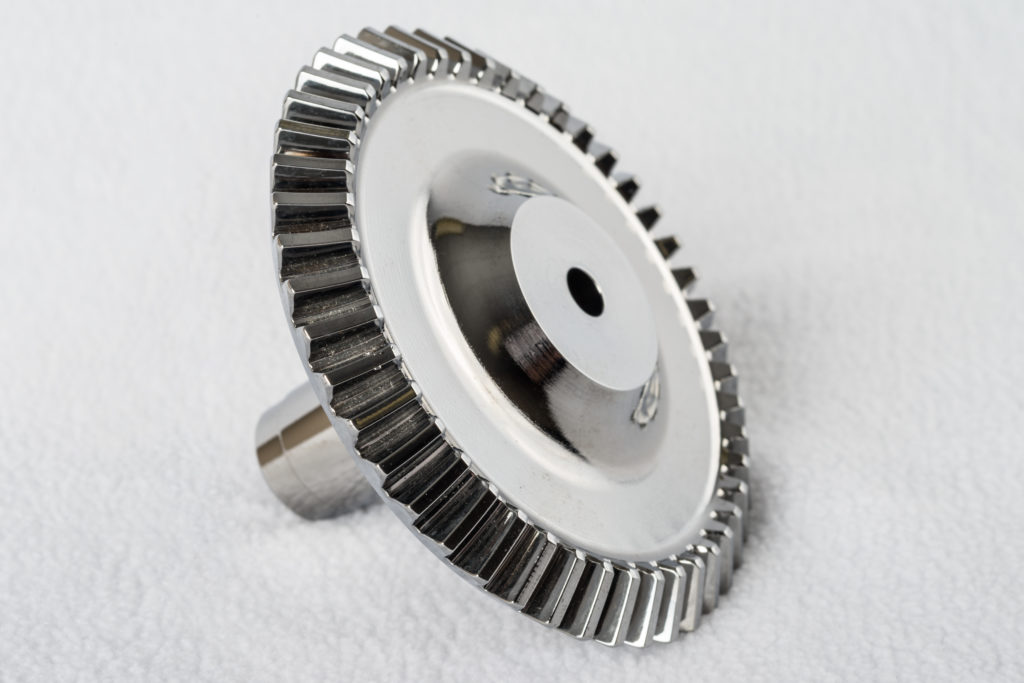

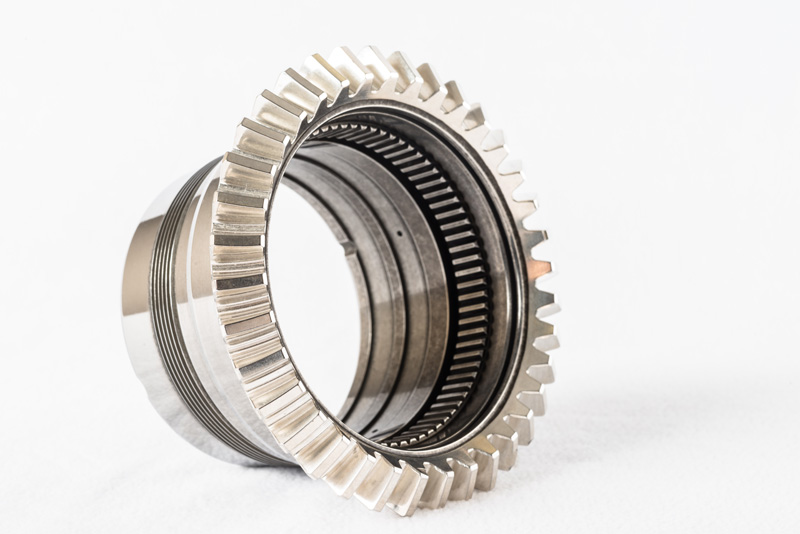

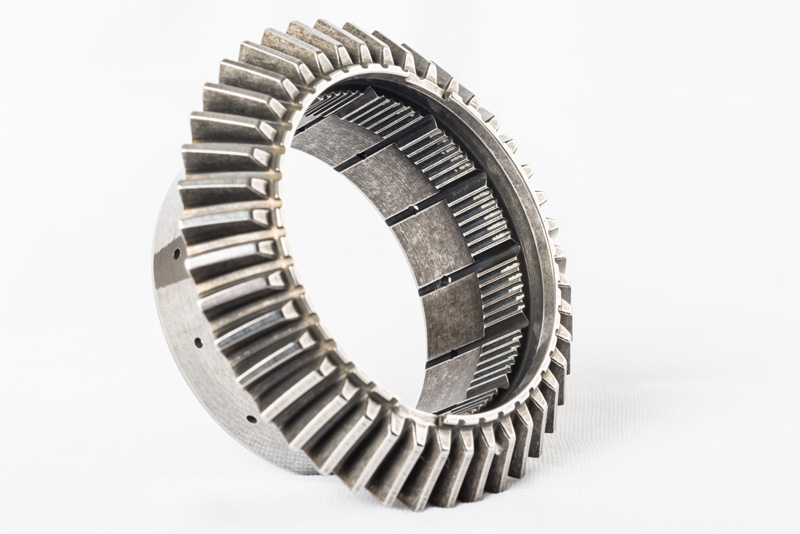

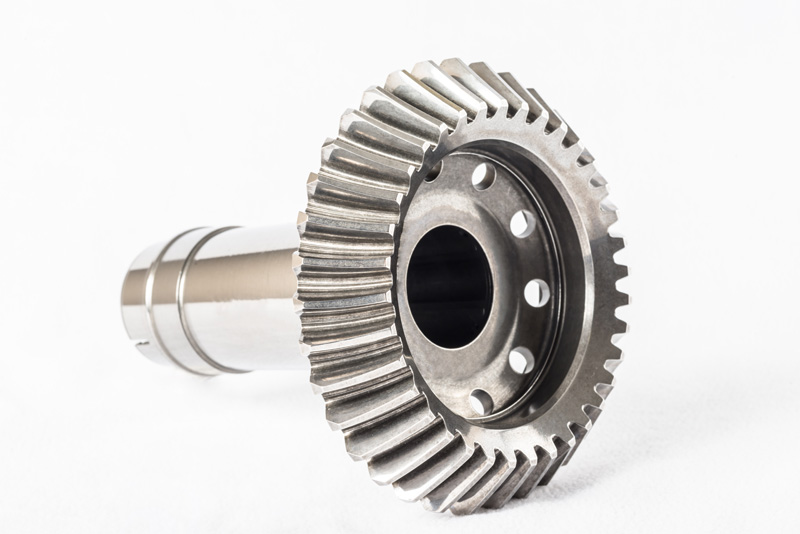

Zerol® Bevel Gears

Size Range and Capability for Zerol Bevel Gears

Maximum Pitch DiameterDiametral PitchFace WidthUnground ToothGround Tooth
22”1.5 – 484.0AGMA Q9*AGMA Q13

* Some configurations to AGMA Quality Number 10 (lapped).

Higher Quality Alternative to Straight Bevel Gears

Zerol Bevel Gears are spiral bevel gears, but the spiral angle of the teeth is zero. If the curvature of the tooth is a large radius, they can easily be confused with a straight bevel gear.
Fig. 1 - Comparison between spiral angles of Spiral Bevel and Zerol® Bevel Gears.
